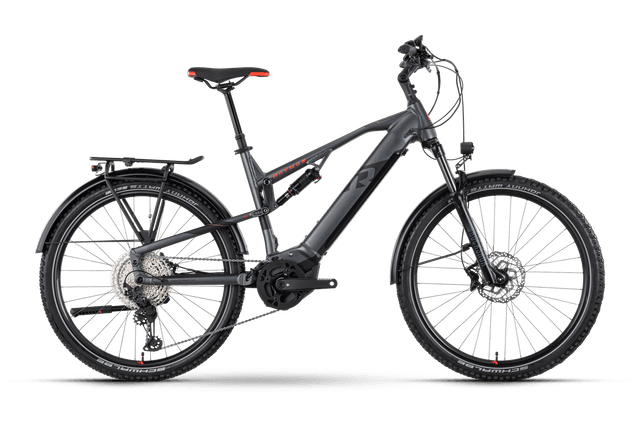

Crossray Pro
Crossray Pro
Crossray Pro
E-Bikes / E-Trekking / Trekking

Crossray Pro

Whether it's a curb or a root carpet - the Crossray Pro has smart suspension, remains stable and gets you through your day with fun thanks to Yamaha power and an 800 Wh battery.
Wheel Size29"
Battery800 Wh, 36 V

1. Choose color

2. Choose size(s)

4.799 €Inkl. MwSt.

Choose a dealer on the dealer map

Crossray Pro

Phew, that was a day! Your 29-inch tires roll smoothly and safely over the asphalt. The 120 mm suspension travel swallows the kerb like a vacuum cleaner swallows crumbs this morning. Like you, your Crossray is an all-rounder. Whether on the way to work or off the beaten track, it adapts - robust, sporty, suitable for everyday use.

And at the weekend? That's when you go out with the kids and show them how to pedal properly. But shh, don't tell mom!
Motor Icon
Motor
Yamaha PW-X3
Frame Icon
Frame
29"
Brakes Icon
Brakes
Tektro Volans
Highlight Bike

Crossray Pro

4.799 € inkl. MwSt.

rahmenform

Frame shape

Unisex

rahmengröße

Frame size

S

rim

Rim

29"

colors

Color

green

derailleur

Derailleur

Shimano Deore, RD-M6100, Shadow Plus, 12-S

shifter

Shifter

Shimano Deore, SL-M6100, Rapidfire Plus

seatpost

Seatpost

Raymon, 34,9 mm, Dropper Post

motor

Motor

Yamaha PW-X3, 250/600 W, 85 Nm

saddle

Saddle

Raymon MIMA VM fit

stem

Stem

Raymon 31.8, Ahead, adjustable

brakes_rear

Rear brake

Tektro Volans, 4-piston, hydr. disc brake

brakes_rear_disc

Rear brake disc

Tektro TR17, 180 mm, 6-bolt

brakes_front

Front brake

Tektro Volans, 4-piston, hydr. disc brake

brakes_front_disc

Front brake disc

Tektro TR17, 180 mm, 6-bolt

tire

Tire

Schwalbe Advancer Hybrid, Reflex, 60-622, 29x2.35

handlebar

Handlebar

Raymon Riser 31,8 mm, Sweep: 9 °, Rise: 15 mm

colors

Color

sunlight magic / black

rim

Rim

Raymon VR24/DT210, 15x110/12x148 mm

chain

Chain

Shimano CN-M6100

cassette

Cassette

Shimano CS-M6100, 10-51T

frame

Frame

29", Alloy 6061, removeable battery, boost, 120 mm

stand

Kickstand

Ursus MOOI ANS, KSA40, adjustable

dämpfer

Shock

SR Suntour EdgeX R, air, 210x47,5 mm

brakes

Brakes

Hydraulische Scheibenbremse

fork

Fork

SR Suntour XCR34X Boost 2CR, air, 120 mm, tapered

weight_total

Max. total weight

130 kg

weight

Weight

29,1 kg

Yamaha
Yamaha

Yamaha PW-X3, 250/600 W, 85 Nm

Power250/600 W, 85 Nm
Akku800 Wh, 36 V
