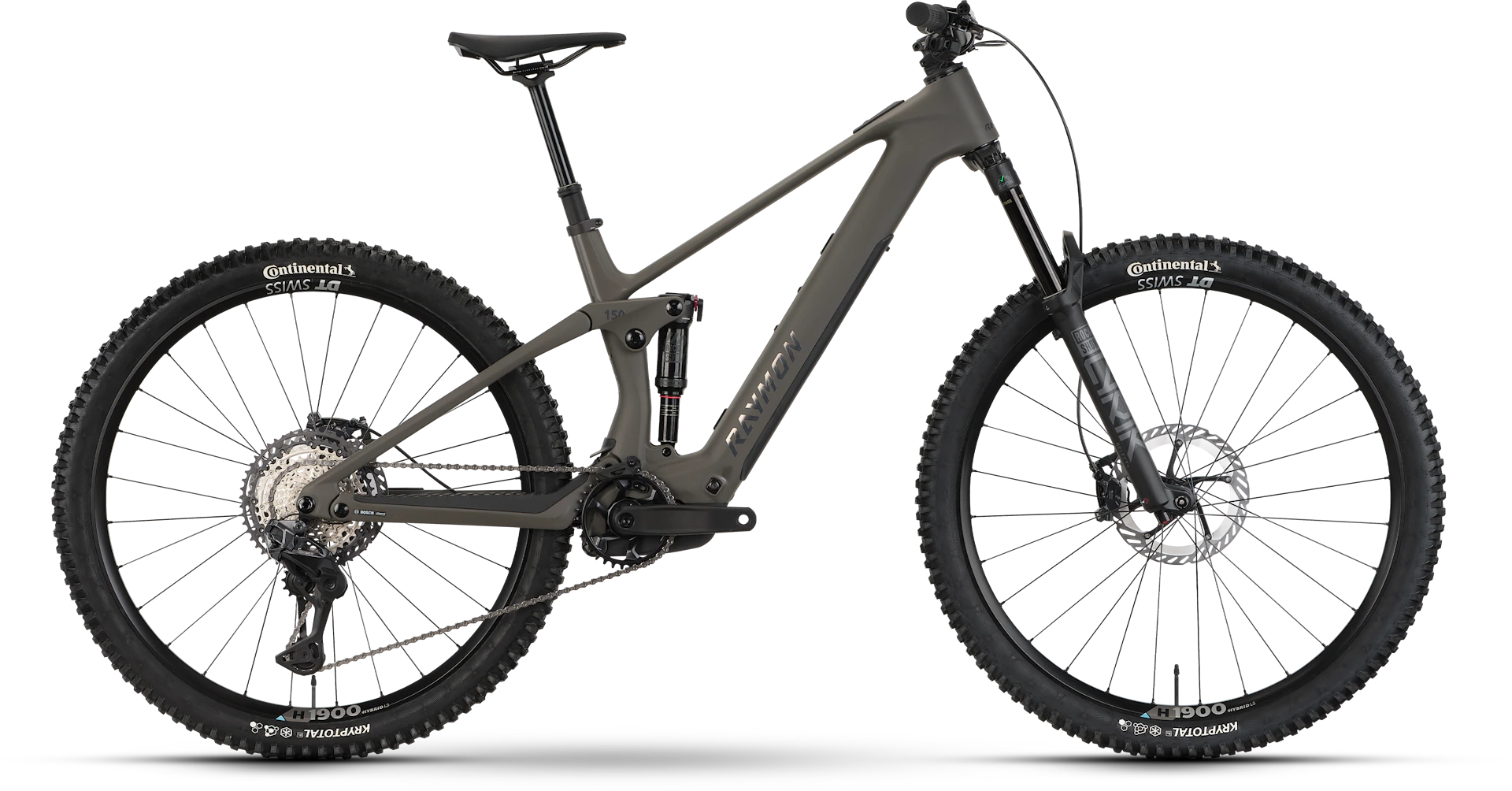

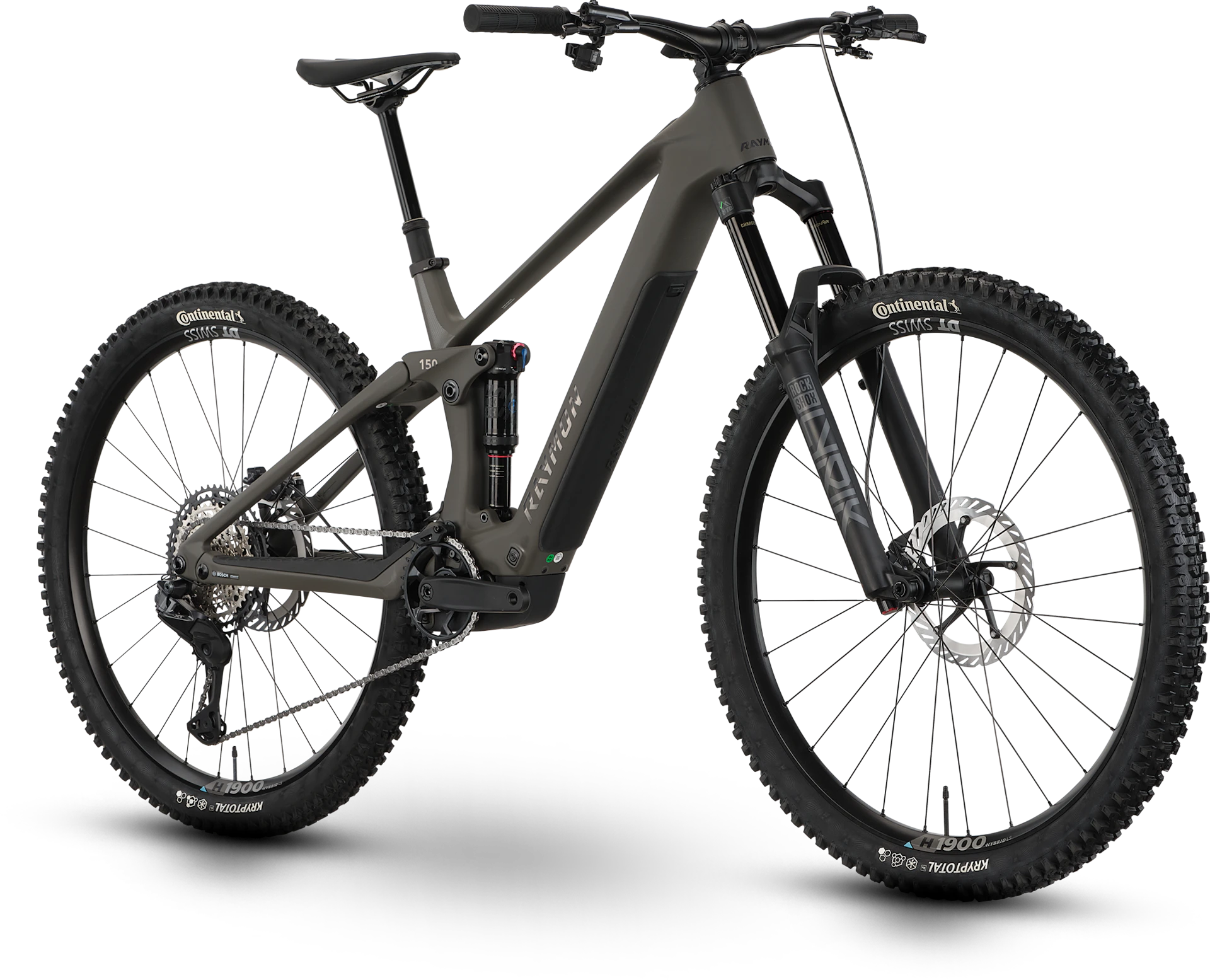

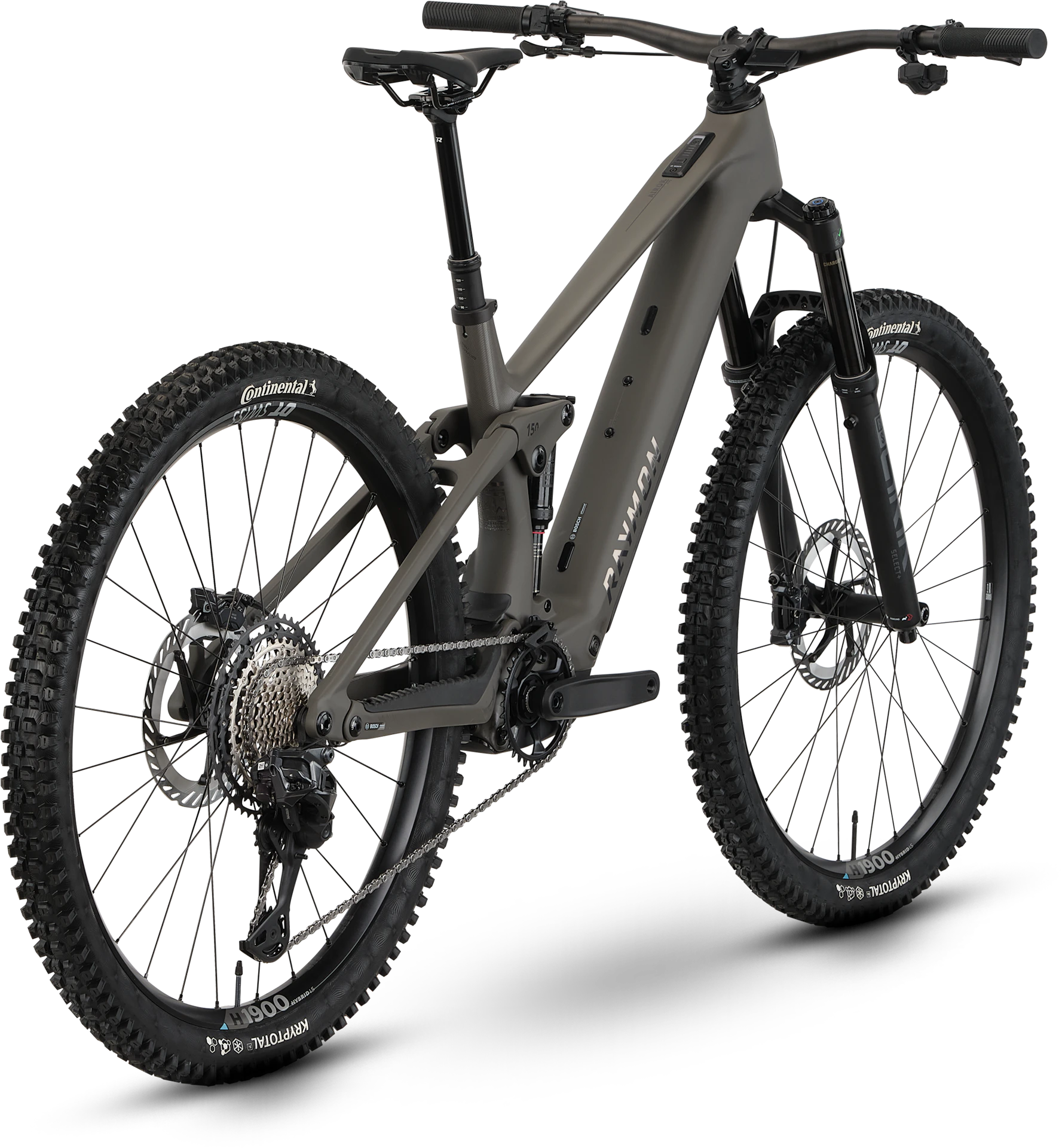

Airok Pro

The Raymon AIROK is a lightweight e-mountain bike with a carbon frame, 150 mm of travel and the Bosch Performance Line SX drive system. The combination of 29-inch wheels, an integrated 400 Wh battery and modern trail geometry strikes a balance between efficiency, agility and control on demanding terrain.

Mehr Details

S M L XL

6.799,00 €

Non-binding price recommendation incl. VAT.

Heart racing. Adrenaline pumping. That tingling feeling when 29″ wheels and 150mm of travel carry you over roots and rocks. 17.7 kg of pure lightness.

Every turn feels like a dance, every obstacle an adventure. You're in the flow, grinning ear to ear as you enjoy the trail. At the bottom, you think: “Again!”

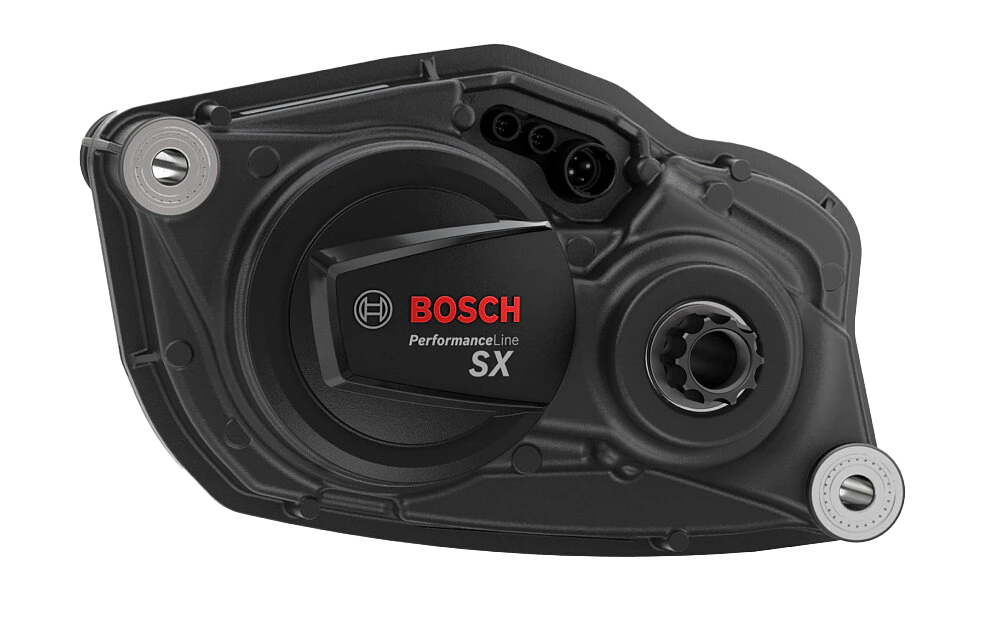

Bosch Performance Line SX - The perfect blend of muscle and motor.

55 Nm

The motor adapts perfectly to your pedaling, delivering a natural riding experience.
Only 2 kg

The Bosch Performance Line SX stays pleasantly in the background, contributing to a light and natural ride.
Flexible charging

Remove the battery at home or plug it in directly on the bike.

RAYMON Care

Safety that rides along

Lifetime frame protection

3 years of CarePlus for e-components

Easy online registration

A bike built for adventure deserves long-term support. Register your bike within 90 days to secure extended frame protection and – with RAYMON CarePlus – coverage for the motor and controls. For countless worry-free miles, on any terrain.

Facilities

Allgemein

frame shape Unisex

frame size M

Einsatzbereiche Gelände

weight 19,2 kg

permissable total weight 130 kg

Antriebssystem

motor Bosch Performance Line SX, 250/600 W, 60 Nm

battery Bosch CompactTube, 400 Wh, 36 V

charger Bosch Charger, 4 A

display Bosch Purion 400, Bluetooth

Akku-Montage Intube herausnehmbar

Bremsen

brake rear Shimano Deore XT, BR-M8220, 4-piston, hydr. disc b

rotor rear Shimano RT-CL800, 203 mm, Center Lock

brake front Shimano Deore XT, BR-M8220, 4-piston, hydr. disc b

rotor front Shimano RT-CL800, 203 mm, Center Lock

Bremsen Hydraulische Scheibenbremse

Ergonomie

handlebar Raymon Riser 35 mm, Sweep: 9 °, Rise: 20 mm

saddle Raymon 143 VM Fit

seatpost Raymon, SL, 31,6 mm, Dropper Post

stem Raymon 35, 0 °, Ahead

grips Raymon MTB, lock on

Laufräder

wheel size 29"

wheelset DT Swiss H 1900 Spline LS, Tubeless ready, Center

tyre Continental Kryptotal-F Trail, Soft, 60-622, 29x2.

Rahmenset

frame 29", Carbon HSC Composite, removeable battery, boo

fork RockShox Lyrik Select+, air, 150 mm, tapered

shock RockShox Deluxe Select+, air, 205x65 mm

Schaltung

rear derailleur Shimano Deore XT Di2, RD-M8260, 12-S

shift lever Shimano Deore XT Di2, SW-M8250, shfit switch

chain Shimano Deore XT, CN-M8100

cassette sprocket Shimano CS-M8200, 10-51T

Streetkit

side stand IC44, compatible

References

Airok Ultra

RRP 8.299,00 €

Gelände 17,9 kg Bosch 400 Wh

Airok Pure

RRP 4.999,00 €

Gelände 20,5 kg Bosch 400 Wh

Airok Comp

RRP 5.499,00 €

Gelände 20,1 kg Bosch 400 Wh

Got questions?

What makes the AIROK a light e-MTB?

The AIROK combines an ultra-light HSC carbon frame with an agile, balanced geometry. This makes it ride directly and naturally like a classic mountain bike – with added support when you need it.

What kind of trails and uses is the AIROK designed for?

With 29-inch wheels and 150mm of travel, the AIROK is built for sporty tours, technical climbs, and challenging descents. The short chainstays provide agility, while the tuned geometry delivers control and stability even in rough terrain.

What kind of support does the Bosch Performance Line SX motor provide?

The Bosch Performance Line SX supports you with up to 55 Nm and adjusts its power harmoniously to your pedaling. This creates a dynamic and natural riding experience that perfectly complements the lightweight character of the AIROK.

Can the AIROK's battery be removed and charged externally?

Yes, the 400-Wh battery can be quickly and easily removed from the frame thanks to the practical slide-to-open system. For longer tours, the range can be extended with an optional 250-Wh range extender.
