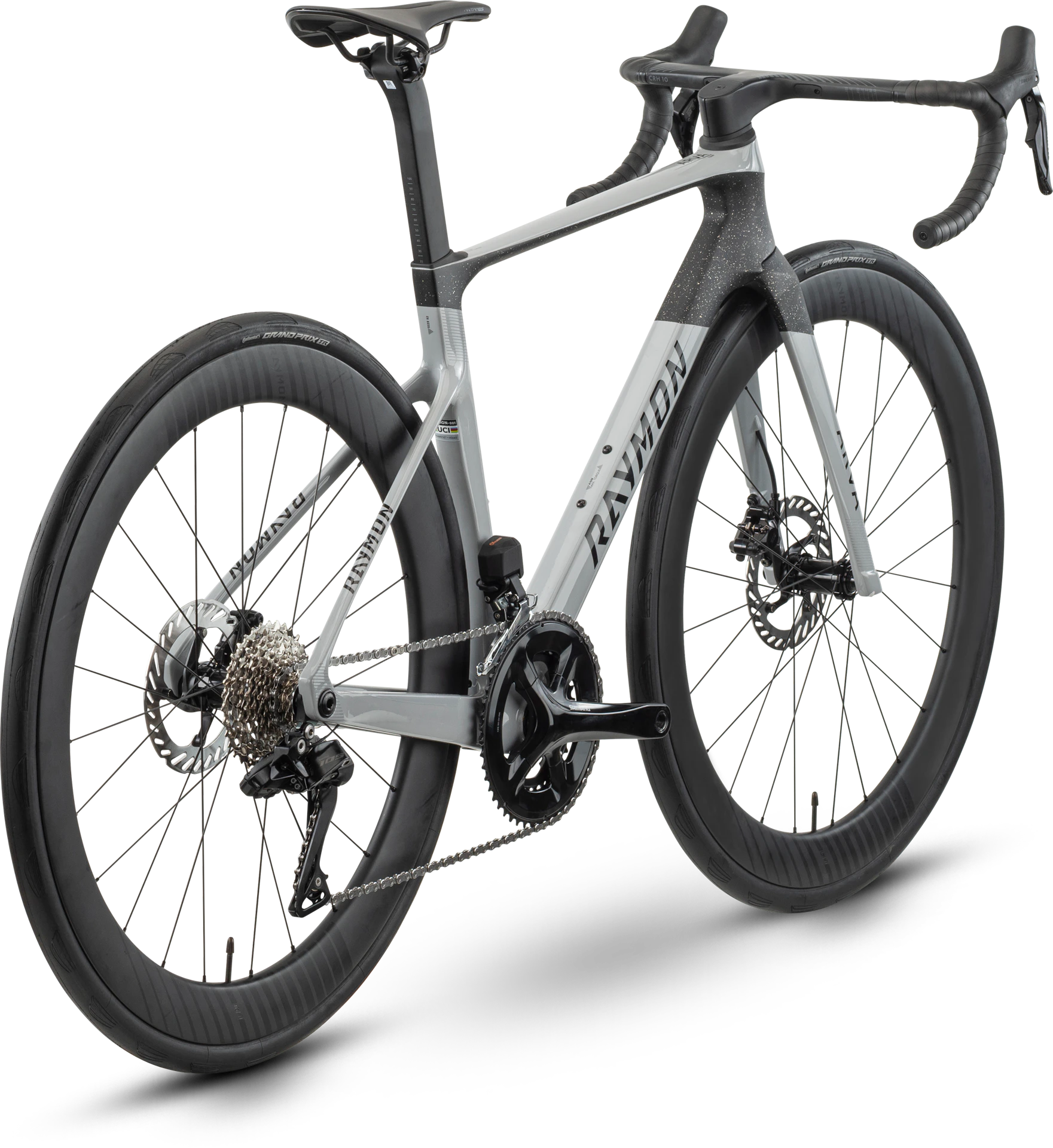

Arva Comp – Grey – Rear view

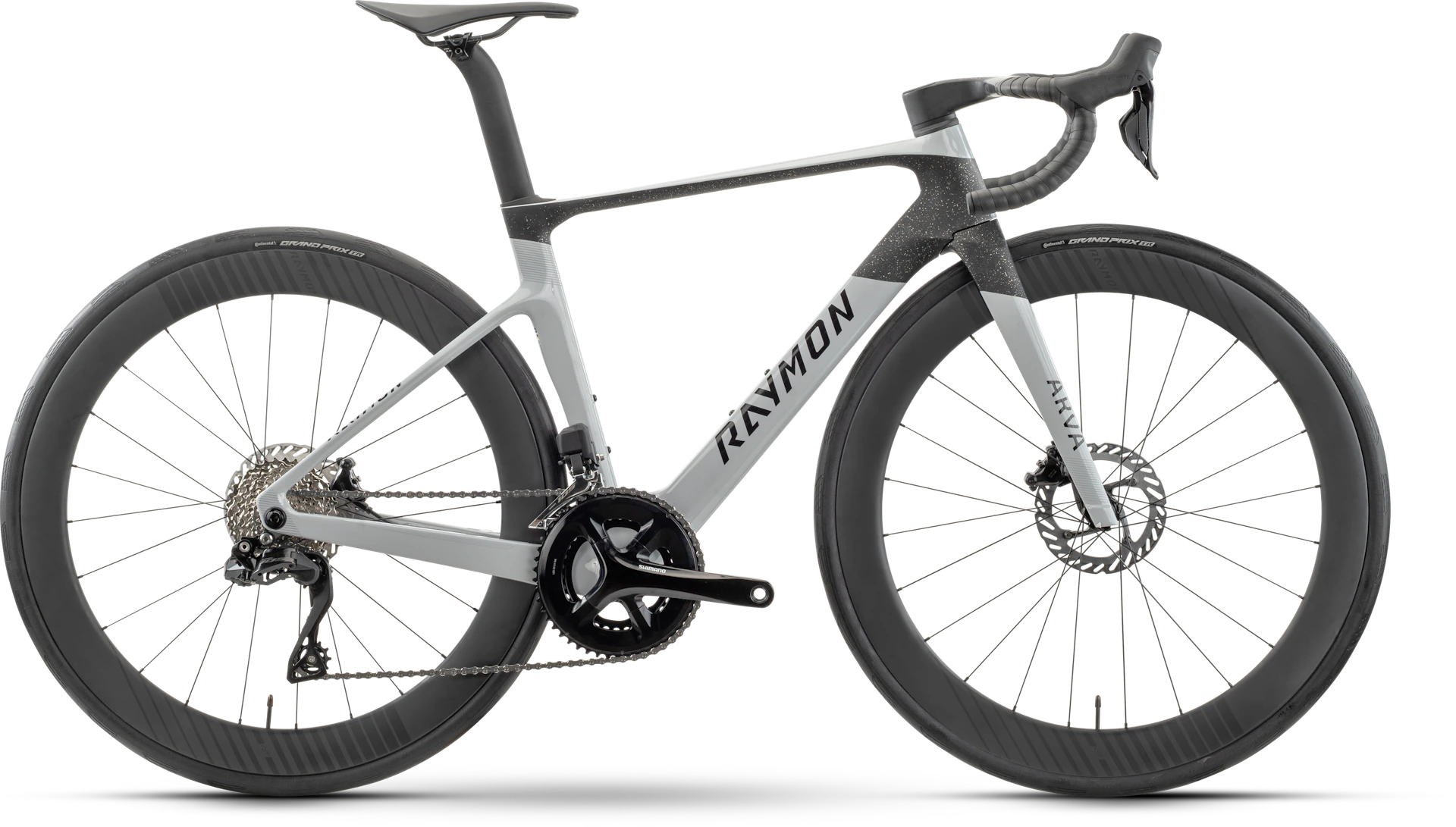

Arva Comp – Grey – Side view

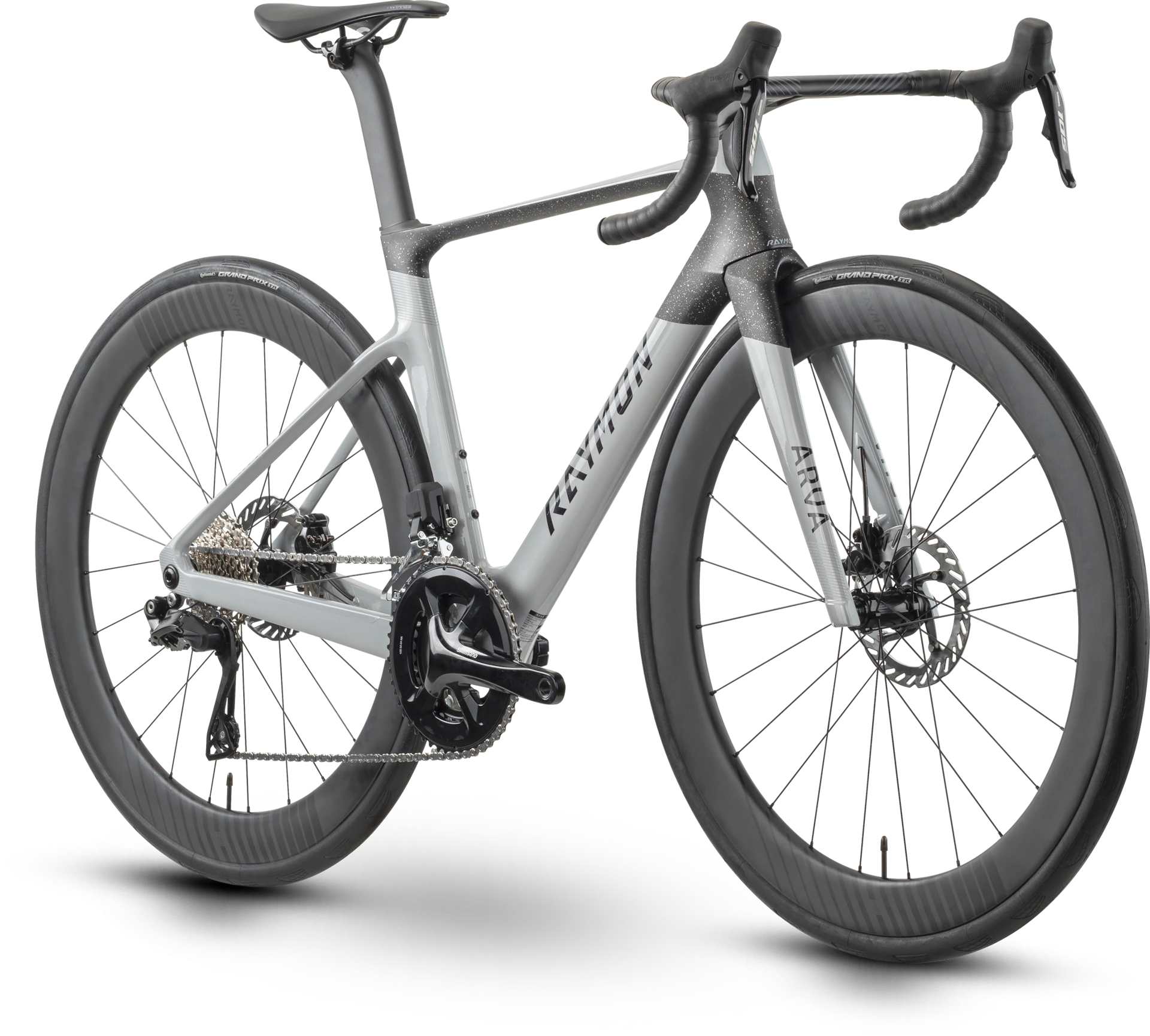

Arva Comp – Grey – Front view
New

Arva Comp

The RAYMON ARVA is made for anyone who doesn't just want to measure speed, but feel it on every ride. The aerodynamic carbon frame and uncompromising race focus put your power straight onto the road.
Mehr Details
Sizes:
4.299,00 €
Non-binding price recommendation incl. VAT.
You cut through the wind. Hear the asphalt hum beneath you. Every pedal stroke propels you forward. Because the ARVA is your windbreaker. Your edge on two wheels. Your extended self, shaped from Ultra High Tensile Carbon and a craving for speed.

Cockpit

Sleek cockpit with integrated cable routing

Wheels

Vision Carbon Wheels from the race segment

Seatpost

D-Shape seatpost with semi-integrated clamp

Thru Axle

Integrated thru axle for reduced air turbulence

Frame

Carbon lightweight frame with race DNA

Ride a UCI-certified race machine

The UCI-certified aero frame is born from 100 years of experience and built for peak performance. Every gram matters because we know every second counts. Your eyes are glued to the racing line, your pulse races ahead. And when you fly across the finish line, you know: It wasn’t luck, because the ARVA is made for victory.

RAYMON Care

Safety that rides along

Lifetime frame protection

3 years CarePlus for e-components

Easy online registration

A bike built for adventure deserves long-term support. Register your bike within 90 days and secure extended protection for the frame and – with RAYMON CarePlus – also for the motor and controls. For many worry-free miles, on any terrain.
Register your bike now

Facilities

Allgemein
permissable total weight 120 kg
frame shape Unisex
frame size 54
Einsatzbereiche Straße
weight 8,3 kg
Bremsen
brake rear Shimano 105, BR-R7170, 2-piston, hydr. disc brake
rotor rear Shimano SM-RT70, 160 mm, Center Lock
brake front Shimano BR-R7170, 2-piston, hydr. disc brake
rotor front Shimano SM-RT70, 160 mm, Center Lock
Bremsen Hydraulische Scheibenbremse
Ergonomie
handlebar Raymon CRH10, one piece carbon
saddle Fizik Vento Antares R7 140mm
seatpost Arva carbon, offset: 15 mm
stem integrated in handlebar
grips Raymon tape, anti slip
Laufräder
wheel size 28"
wheelset Raymon CR55, carbon, 12x100/12x142 mm
tyre Continental Grand Prix TR, 30-622, 28x1.20
Rahmenset
frame HSC Carbon, Aero, UCI
fork HSC Carbon, Aero, UCI
Schaltung
rear derailleur Shimano 105 Di2, RD-R7150, 24-S
shift lever Shimano 105 Di2, ST-R7170
crankset Shimano FC-RS520, 50/34T
chain Shimano CN-M6100
cassette sprocket Shimano 105, CS-R7101, 11-34T
Streetkit
side stand not compatible

References

Arva Pro
RRP 4.799,00 €
New
Arva Pro 700 x 54 24S Ultegra Di2
Straße 8,2 kg
Arva Pro SE
RRP 4.399,00 €
Arva Pro SE 700 x 54 24S 105 Di2
Straße 8,4 kg
Arva Ultra
RRP 5.499,00 €
Arva Ultra 700 x 54 24S Ultegra Di2
Model year 2026 Straße 7,7 kg
Arva Ultimate
RRP 8.999,00 €
Arva Ultimate 700 x 54 24S DuraAce Di2
Straße 7,1 kg
Arva Evo
RRP 5.999,00 €
Arva Evo 700 x 54 24S Force E1 AXS
Straße 7,6 kg
Arva Elite
RRP 6.999,00 €
Arva Elite 700 x 54 26S Record
Straße 7,6 kg

Still have questions?

What makes the RAYMON ARVA special?
The ARVA is an aerodynamically engineered carbon road bike for those seeking speed and maximum efficiency. The frame made from Ultra High Tensile Carbon combines high stiffness with optimized weight, ensuring your power is directly converted into forward motion.
Is the RAYMON ARVA approved for racing?
Yes, the ARVA’s frame is tested and certified according to UCI regulations. This makes the bike suitable not only for fast training rides but also for official races.
What riding position does the RAYMON ARVA offer?
The sporty geometry puts you in an aerodynamic yet controlled riding position. A longer reach, lower head tube, and stretched seat triangle ensure you can efficiently transfer your power to the road. Two different seatpost offsets allow further adjustment of the position.
What equipment does the RAYMON ARVA Ultimate offer?
The ARVA Ultimate is equipped with components from the professional race segment. These include Shimano Dura-Ace components as well as Vision 60 RS wheels with carbon rims, carbon spokes, and ceramic bearings.
